General information:
– Paper Machine :BELOIT Coated Wood free
– Final paper gsm: 40 -160
– Stopped end 2023
– Capacity 130 – 200 Tpd
– Max width: 2.800 mm
– Year Efficiency: 93%
– Max speed 730 mpm
– Complete approach flow with fan pump, vertical screen Metso MS 340HT year 2006 and secondary screen

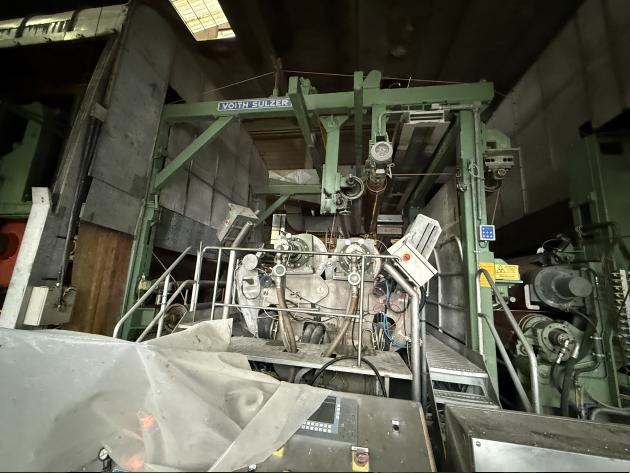

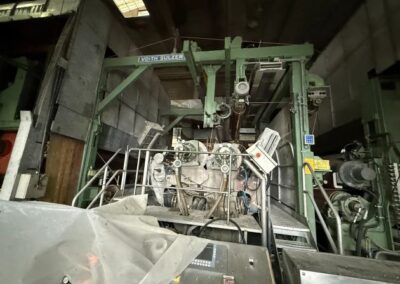

– Headbox: Voith Masterjet 2006
– Wire width: 3500 mm (year 2016) with ceramics IBS and dany roll and cough roll, with 2 x Nash CL6002 and 1 x turbo blower Andritz
– Press section: pick up press, (2) press + offset

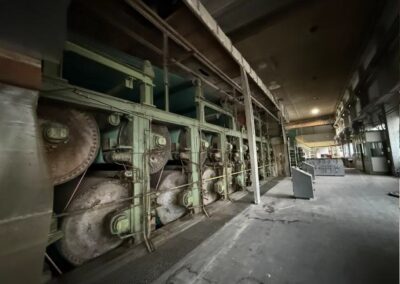

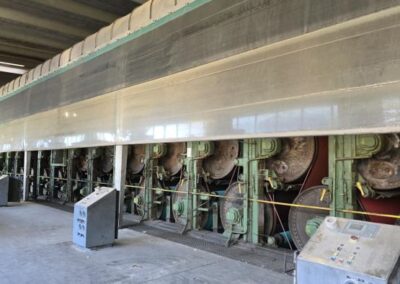

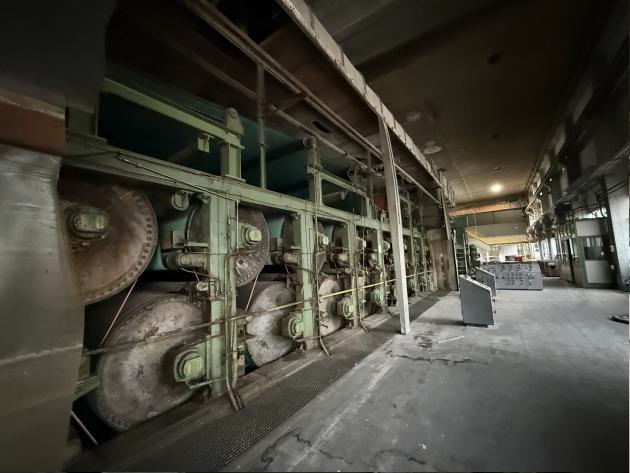

– Pre drying section: Beloit type 4140,(4 group double flted) with central lubrication unit
– Steam pressure max 3,5 bars
– Number of dryier: 36
– Dryier diameter: 1522 mm
– Voith Film press coater year 2006
– Precoater: 2 x BillBlade Beloit with stock tanks for the coater and filters and 2 scanners
– Post drying section: (17) IR row; (1) air dryer BMB + (3) chromed dryer
– Kuster roll for hardnip calander

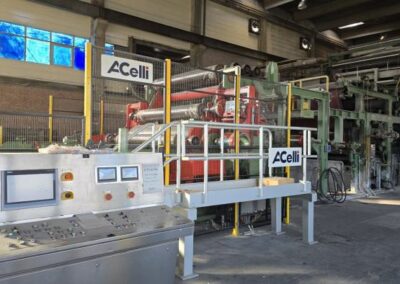

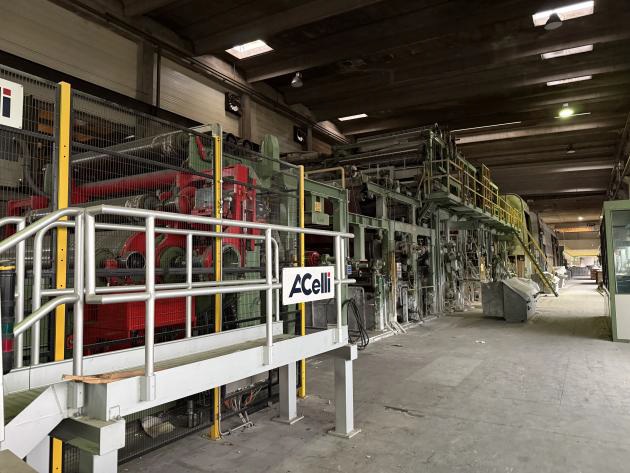

– Pope reel : Centerwind (year 2019) built by ACELLI diameter 2.200 mm with automatic spools loading with broke pulper Metso 2006
– QCS AccuRay 1180
– AC drive ABB SINOVERT
– By wind double drum 1.100 m/min
– Spare rolls for each position
