Screens

General information: - Built by Lamort- Model CH5 A- Slotted basket 0,25 mm- Capacity from 45 to 170 Tpd- Power installed 45 kW- Still erected on floor LAMORT CH5A

General information: - 4 X high density cleaner Kadant Liquid Cyclone 14 ½- Flow per unit 10.000 l/min- Included set of valves- Still erected on floor (4) KDANT HDC LIQUID CYCLONE 14 1/2

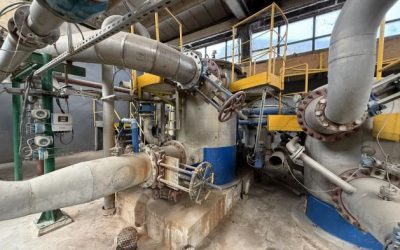

General information: - Built by Lamort- Type SPN10 low consistency- Flow 30.000 l/min- Slotted basket 0,20 mm- Power installed 90 kW- Capacity 220 Tpd- Still erected on floor (2) LAMORT SPN10

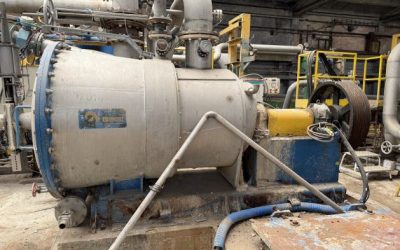

General information: - Built by Lamort model ADS7- Year installed 1998- 1st screen stage holes 3,5 mm and 2nd stage screen slots 0,20 mm- Capacity 210 Tpd- Power motor not included- Equipment still erected on floor (2) FRACTIONATOR LAMORT ADS7

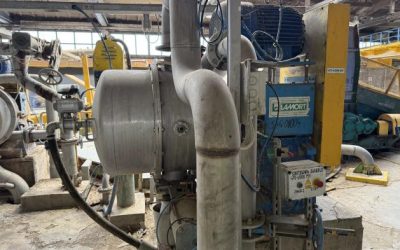

General information: - Built by Lamort year 1998- Model Diabolo DF2- Capacity 30 – 40 Tpd- Flow 100 m3/h- Holes diameter 2,7 mm- Power motor included 45 kW- Stopped and still on floor (2) LAMORT DIABOLO DF2

General information: - Model l 14 ½- Year installed 2003- Flow rate 4.546 l/min- Inlet pressure 1,75 – 2,46 bar- Output pressure 0 – 0,42 bar- Concentration 4%- Not included valves and panel- DISMANTLED AND STORED OUT SIDE (2) LIQUID CYCLONE 14 1/2
