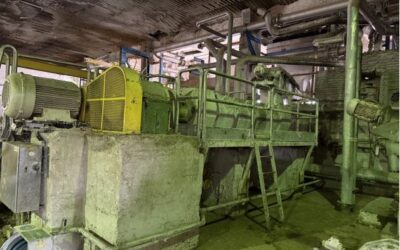

General information: - Built by: THUNE Screw Press SP 45 SL- Built on Stainless Steel- H = 1030 L = 4910 W = 950 MM- NET WEIGHT: 3700 KG- NORMAL CAPACITY 120 TPD- INLET CONS: 2 % OUTLET CONS: 25 % 300 - 400 CSF TEMP. 60 DEG C pH 5,5 - 8,0 GEARBOX AVAILABLE HANSEN...
Thickeners

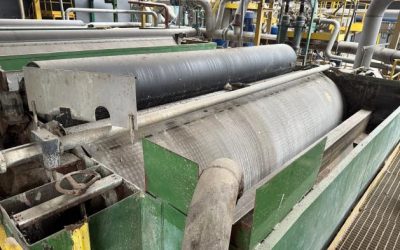

5.500 mm Drum Thickener
General information: - Drum width 5.500 mm diameter 1.250 mm- Capacity from 99 to 200 Tpd depending of the pulp- Consistency enter 1% exit up to 3,5%- Drum on stainless steel- Oscillating shower with power installed 0,18 kW- Power motor included 7,50 kW- Stored in our...
4.000 mm Drum Thickener
General information: - Drum width 4.000 mm diameter 1.250 mm- Drum built on stainless steel- Consistency enter 1% exit up to 3,5%- Capacity from 72 to 150 Tpd depending pulp- Shower included oscillating power 0,18 kW- Power motor included 2,2 kW- Total weight 3.300...
TROMMEL stored in our warehouse
General information: - Built on stainless steel - Diameter 630 mm - Length perforate 890 mm - Diameter holes 5 mm - Power motor installed 0,65 kW - 1 shower - Good condition and stored TROMMEL stored in our warehouse
Drum Thickener table width 3.600 mm
Drum Thickener table width 3.600 mm
Dewatering Press MERI COMPAX 50
General information: - Built by Meri (Voith Sulzer)- Model COMPAX 50- Inlet dryness 7 – 20%BD- Outlet dryness up to 70%BD- Capacity up to 25 t/d- Screw diameter 500 mm- Motor power 22 kW- Length 3.840 mm- Width 1.810 mm- Height 1.350 mm- Weight 4.140 kgs- Not included...
