General information: - Paper Machine :BELOIT Coated Wood free- Final paper gsm: 40 -160- Base paper gsm:30 – 110- Capacity 130 Tpd- Max width: 2.800 mm- Year Efficiency: 93%- Max speed 730 mpm- Headbox: Voith ModuleJet- Wire width: 3500 mm (year 2016)- Press section:...
General information: - Design speed: 800 m/min, Operating speed: 700 m/min, Basis weight: 20–60 g/m²- Hydraulic headbox, 14.5 m wire section with top former- Press section: 606 press (750/750/750) + main press (1000/550)- Dryer section with 28 dryer cylinders- One...

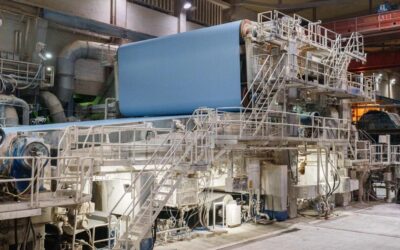

General information: - Line start-up 1975 - PM Rebuilds 1994, 2001 - Products: LWC & MWC - Production capacity 300 000 t/a - PM basis weight 30-70 gsm - Coated paper weights 50-100 gsm - Trim width 7360 mm Complete Paper machine width on pope reel 7.360 mm

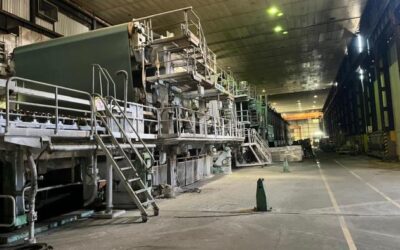

General information: - Width on pope reel 5.690 mm - Speed maximum 1.200 m/min working 730 m/min - Papers from 46 to 150 gr/m2 - Capacity 472 Tpd - Wire width 6.200 mm Paper machine width on pope reel 5.690 mm

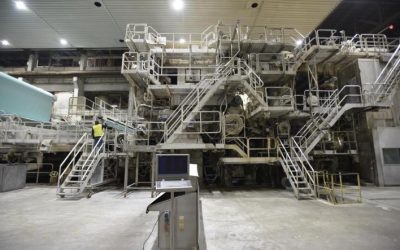

General information: - Manufacturer Valmet and Voith- Year of manufacture 1980/1996/1999/2009/2024- Working width of the paper 7,420 mm- Speed (max.) 1,350 m/min- Basis weights Coated: 57-110 g/m², raw: 40-70g/m²- Capacity 260,000 tons p.a. PM5 working width of the...

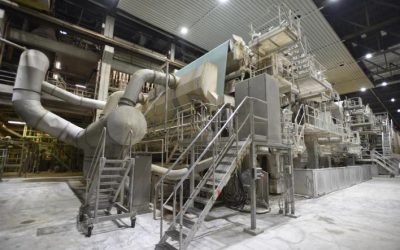

General information: - Manufacturer Valmet / Voith / Beloit et al.- Year of manufacture 1970/1988/1995/2014/2024- Working width of the paper 7,500 mm- Speed (max.) 1,200 m/min- Basis weights Coated: 39-90 g/m², raw: 25-55g/m²- Capacity 190,000 tons p.a. PM4 working...
